owa4x

CPU

• ARM Cortex A8 at 800MHz clock speed
• Debian Distribution File System*
• NAND FLASH 1GB (Up to 2 GB)
• DDR3 512MB (Up to 1 GB)
• MicroSD card holder for additional storage

*For more information about the OS and kernel, contact us.

GNSS

• Receiver: GPS/GLONASS/QZSS/BeiDou
• 72-channel* continuous tracking receiver
• GALILEO E1B/C ready*
• SBAS: WAAS, EGNOS, MSAS, GAGAN
• Update Rate: 10Hz
• Accuracy: 2 meters CEP
• Signal Acquisition:
  • Cold Start: 26 s
  • Hot Start: < 1.5 s
• Signal Reacquisition: < 1 s
• Active Antenna Power Supply: +3.0V @ 34mA*

*Features availability depending on the version.

Interfaces

• Up to 4 CAN bus:
  • 2 CAN bus supporting full speed 1Mbps CAN 2.0B
  • 2 CAN FD supporting 8Mbps. (Only with Global LTE option)
• Up to 2 K-line bus
• Integrated sensors: Programmable 9-axis sensor (accelerometer, gyroscope and magnetometer)
• TPM 2.0 (Only with Global LTE option)
• 10 configurable digital input/outputs:
  • 50V max inputs (logic low 3V)
  • All inputs function as wake signals for low-power modes
  • All inputs can be used as counters (odometer). 32bit, 3Khz max
  • 8 open collector outputs (200mA each)
  • 2 high-side switches to Vin for output (1A each)
  • Short-circuit protection for all outputs
• 4 analogue inputs:
  • 12-bit resolution, 1% accuracy
  • 1 Share digital I/O pins and 3 dedicated pins
  • 0-5.12V (5mV per bit) or 0-30.72V (30mV per bit) configurable by SW
• Maxim 1wire
• microSD card holder
• USB Host 2.0
• 3 external RS232 ports. 6 pins configurable by SW as follows:
  • 3 x (TX/RX) or
  • 1 x (TX/RX) & 1 x (TX/RX/CTS/RTS) or
  • 1 x (TX/RX/CTS/RTS/DCD/DTR)
• One RS485 port
• Ethernet 10/100 Base-TX
• Vout 5V power output (500 mA max)
• FAKRA antenna connectors
• 4 LEDs for status indication
• Audio CODEC for external microphone and speaker

*Availability of features depends on models.

Power Supply

• Nominal range of 9 V to 36 V

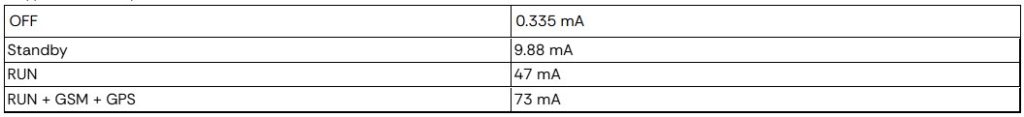

• Typical consumption at 24 V

Batteries

• Back-up when there is no power supply available
• Standard backup battery for RTC. Duration 10 years
• Optional rechargeable Li-ion 3.7 V. Inserted via the rear battery cover

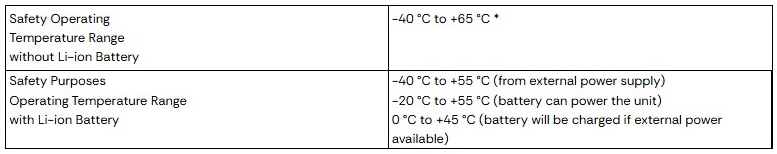

Temperature

* Industrial temperature range components -40 °C to 85 °C

LTE Cat 4 / 3G / 2G

• LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
• LTE TDD: B38/B39/B40/B41
• UMTS: B1/B2/B4/B5/B6/B8/B19
• GSM: 850/900/1800/1900MHz
• LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL)
• LTE-TDD: Max 130Mbps (DL), Max 30Mbps (UL)

Rugged enclosure

• Environmental protection to IP67
  (full protection against dust and water)
• Dimension: L=149 x W=135 x H=58 mm
• Weight: 385g
• Material: Glass-reinforced polyester
• System connectors: TE 776163-1 (35 pins)
• MicroSIM
• MicroSD

Development Kit

• Developer’s board owa4X, power supply cables, cables for interfaces, antennas, web access to: cross compiler, API´s, libraries, manuals and application notes

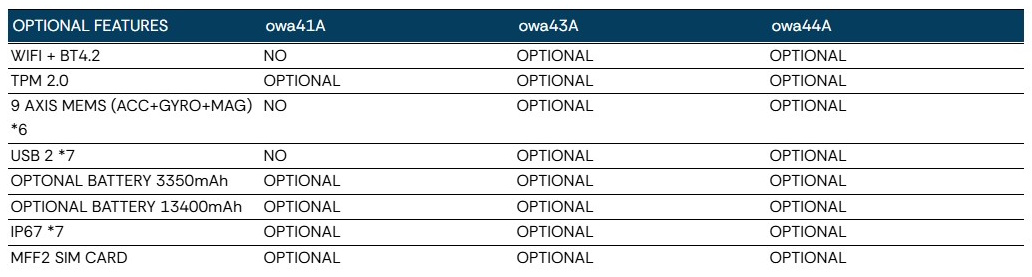

Other Options

• See Variants & Options

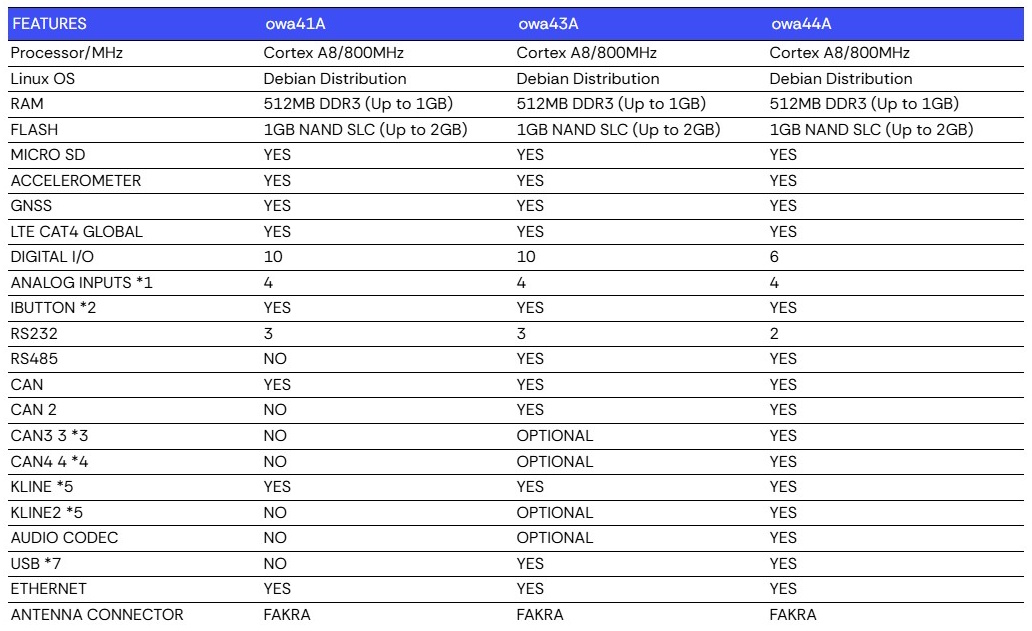

This table is only an HTML5 version of the official BOK 100 9001 owa4x family variants & options summary, available on the documentation section of the owa4x IoT gateway.

Notes

1. Analogue input 1 is multiplexed with DIO1
2. The iButton is multiplexed with DIO6 and cannot be used simultaneously
3. CAN3 not compatible with DIO2 and DIO3
4. CAN4 not compatible with DIO4 and DIO5 and 9 Axis MEMs
5. Kline and RS485 cannot work at the same time (SW selected). Kline 2 is incompatible with the 1st RS232 and is multiplexed with DIO7
6. 9 Axis MEMS incompatible with CAN 4
7. USB connector with no external access, with an IP67 cover
