Specifically designed to allow bidirectional control and monitoring of all parameters and functionalities of your building automation projects
This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features. Thanks to its support for the KNX standard datapoint types (DPTs), guarantees seamless integration with any KNX device or system.
The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.

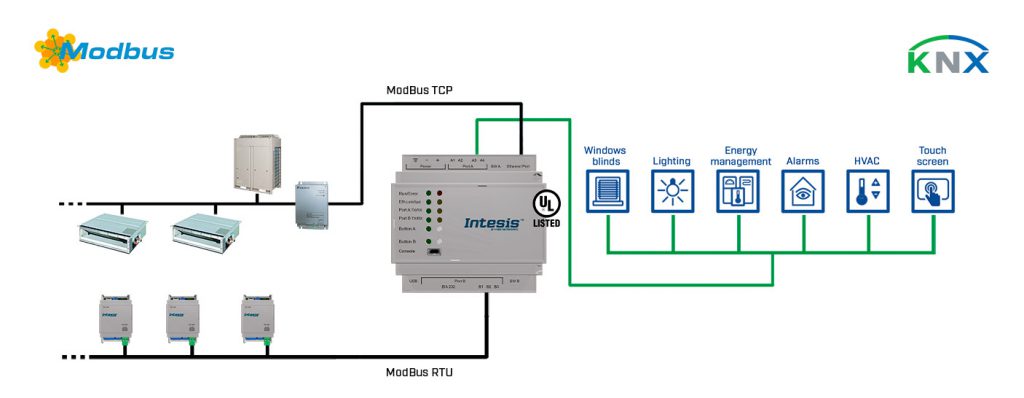

Integrate any Modbus RTU or TCP server device, or both at the same time, with any KNX device or system. The aim of this integration is to make accessible Modbus registers data and resources from a KNX system as if it was a part of the own KNX system and vice-versa.
Modbus Protocol Translators
Bring connectivity to your Modbus management system thanks to Intesis Modbus solutions. Connect BACnet, KNX, LonWorks, DALI, or M-BUS devices to Modbus systems and extend your building management system capabilities.
Intesis Modbus can act as a Modbus RTU device, Modbus TCP device, or both.
On the Modbus server versions, the gateway provides server functionality to the BMS or Modbus controller over Modbus TCP through the Ethernet port and over Modbus RTU through the serial port (EIA485 or EIA232).
On the Modbus client versions, the gateway provides client functionality to control Modbus TCP server devices through Ethernet and Modbus RTU devices through the serial port. In such cases, control and monitoring of Modbus devices from BACnet and KNX BMS controllers is possible.
- Great integration flexibility thanks to KNX TP, RS485, Ethernet, DALI, or M-Bus interfaces.
- Scaled licenses per number of datapoints help to find the right gateway version for your project.
- Modbus advanced functionalities to improve internal and external protocol communications.
- Modbus template repository with most common Modbus devices and template generator to create your own template devices.
Modbus TCP & RTU
All Modbus gateways can communicate with Modbus TCP and RTU networks at the same time.
Most I/O Modbus functions supported
Use any I/O function code of the wide range supported by Modbus gateways (1x, 2x, 3x, 4x, 5x, 6x, 15x, and 16x).
Multiple data formats
Configure the data length (1, 16, 32, 48, or 64 bits), format (unsigned, signed, float, and bitfield), and byte order (big or little-endian).
Polling groups
Improve Modbus communications grouping register requests per device, asking multiple registers in a single request.
KNX Protocol Translators
Provide BACnet, DALI, M-Bus, or Modbus communication to your KNX installations. Intesis KNX solutions offer a perfect integration in any KNX project thanks to the availability of multiple standard DPT (Data Point Types) and our expertise in KNX solutions.
Intesis KNX connects directly to the KNX TP-1 bus and behaves like any other device in the KNX system, with the same configuration and operational characteristics as other KNX devices.
- Great integration flexibility thanks to KNX TP, RS485, Ethernet, DALI, or M-Bus interfaces.
- Scaled licenses per number of datapoints help to find the right gateway version for your project.
Standard KNX Datapoint Types
It ensures interoperability and data quality between different manufacturers’ devices.
Extended group addresses
In big projects actívate extended group addresses and use up to 32 main group addresses in a 3-Level configuration.
Sending and listening addresses
Every point can be addressed not only using its main group address but also using the other defined listening addresses for the point.
Ri flag (Read on initialisation flag)
In order to get updated data as soon as possible, KNX gateways could requests updated data to the bus after initialisation, instead of waiting for changes.
Product Information
- UL Certified
- Support for KNX TP
- Up to 3000 KNX communication objects
- KNX standard Datapoint Types (DPT) available
- Up to 5 Modbus TCP nodes/devices
- Up to 255 Modbus Devices per Node (RTU and TCP)
- Possibility to generate/download templates of your Modbus products
- Easy integration & updates with Intesis MAPS
- ORDER CODES:
| INKNXMBM1000000 | Modbus TCP & RTU Master to KNX TP Gateway – 100 points |
| INKNXMBM2500000 | Modbus TCP & RTU Master to KNX TP Gateway – 250 points |
| INKNXMBM6000000 | Modbus TCP & RTU Master to KNX TP Gateway – 600 points |
| INKNXMBM1K20000 | Modbus TCP & RTU Master to KNX TP Gateway – 1200 points |
| INKNXMBM3K00000 | Modbus TCP & RTU Master to KNX TP Gateway – 3000 points |
- Intesis Gateway.
- Installation Manual.
- USB Configuration cable.
- (Power supply not included).
- Warranty: 36 months.
