Integrate any Air Conditioning system and control it from anywhere

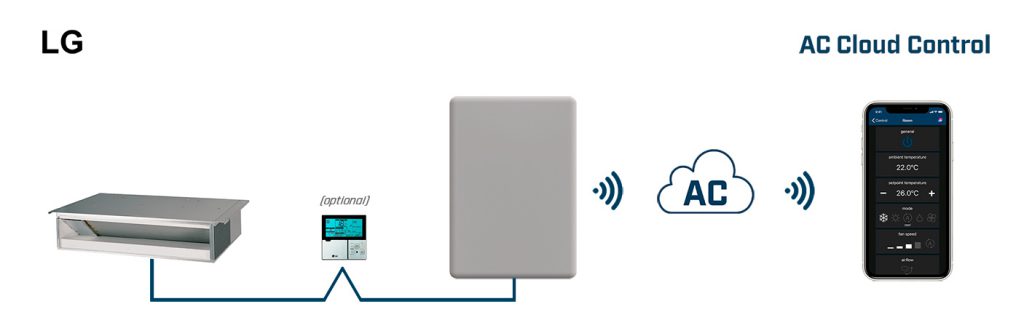

The AC Cloud Control device for LG allows complete and natural integration of LG VRF systems into the AC Cloud Control system for professional HVAC control and monitoring. The gateway is wired directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint… but the monitoring of errors and alarms.
AC Cloud Control devices are developed to interface the AC units and provide cloud connectivity using the local WIFI network. They are b/g/n compatible and use 2.4GHz frequency, ensuring further coverage within the installation, and showing no communication problems due to the optimised IoT communication protocol used. They are firewall-friendly since only outbound ports are used, ensuring an easy and secure configuration.
Universal Controller
Compatibility for any infrared controlled system
Brand Specific AC
For RAC and domestic lines
Brand Specific RC
For PAC & VRF
Remote control
AC Cloud Control offers all the control needed, in a simple and intuitive way:
- Full control of your HVAC system.
- Control the AC Unit using simultaneously the manufacturer’s remote controller and AC Cloud Control.
Smart
Once AC Cloud Control is connected to the AC unit, the very latest technologies are used to provide the most advanced functionalities.
- Some functionalities will be executed in our servers.
- Other functionalities will be executed in the device.
Product Information
- Easy WiFi configuration using the native Android and iOS app.
- b/g/n WiFi standards supported at 2,4 GHz.
- Quick and easy installation (plug and configure the WiFi).
- External power not required.
- Simultaneous control of the AC unit by the manufacturer’s remote controller and by AC Cloud Control through the app and web.
- Native Android and iOS app.
- Web-based dashboard.
CT – | UJ – NV2R0 | UT – | CB – | CM – N14 | CV – | UB – (except UB – N**) | UB – N94 | UM30N14 | UM – N24 | UM – N34 | UV – | CQ – | LAN – HVP | LAN – HSV2 | LSN – HYV | LSN – HV2 | LSN – HSV2 | CA – AW* | AM – BP | MS – AW* | MA – AH* (except MA09/12AH*-NF1) | MA09/12AH*-NF1 | AMNH09/12GAF*1 | MA – AH1 (except MA09/12AH1*-NF1) | MA09/12AH1-NF1 | AMNH09/12GAF11 | G – WL | DM – RP | H – AL | PM – SP | MV – AH | CV – | UV – H | UT – H | MT09AH | MT11AH | MT06AH | MT08AH | CT09*** | CT12*** | CT18*** | CT24*** | AMNC12GTRA2 | AMNC18GTQA2 | AMNC24GTPA2 | MB – AHL | MB – AH | CB – | CM – N14 | UB – H | AMNC12GB1A2 | AMNC – GB2A2 | AMNC – GBHA2 | CS – AQ | MS – AQ | E – SQ | MS – SQ | LMN – HVT | LMN – HVT | LSN240HSV2 | LSN – HSV4 | LSN – HSV5 | LAN – HSV4 | LAN – HSV5 | LMN – HVT | LMAN – HVT | LMAN – HVP | LMDN – HV | LMDN – HV | LMHN – HVT | LCN 097 HV4 | LMCN – HV | LMVN – HV | ARNU – GSEL2 / GSEL4 | ARNU – GSJN4 | ARNU – GSKN4 | ARNU – GSVA4 | ARNU – GS5L2 / GS5L4 | ARNU – GSBL2 / GSBL4 | ARNU – GSBL4 | ARNU – GSCL2 / GSCL4 | ARNU – GSB*4 | ARNU – GSE*1 / GSE*2 | ARNU – GS8*2 | ARNU – GSF*2 | ARNU – GSF12 /GSF14 | ARNU – GTUC2 /GTUC4 | ARNU – GTLC2 | ARNU – GTRC2 | ARNU – GTRC4 | ARNU – GTQC2 / GTQC4 | ARNU – GTPC2 / GTPC4 | ARNU36GTNC2 | ARNU – GTMC2 | ARNU – GTMC4 | ARNU – GTUC2 | ARNU – GVJA2 | ARNU36GVKA2 | ARNU48GVLA2 | ARNU – GTSC4 | ARNU – GTUC4 | ARNU – GTTC2 /GTTC4 | ARNU – GVEA2 | URNU – GVJA2 | URNU – GVKA2 | URNU – GVLA2 | ARNU – GV1A4 | ARNU – GV2A4 | ARNU – GBHA2 | ARNU – GBHA4 | ARNU – GBGA2 | ARNU – GBGA4 | ARNU – GBRA2 /GBRA4 | ARNU – GB8A2 / GB8A4 | ARNU – GBRA4 | ARNU – GB8A4 | ARNU – GM1A4 | ARNU – GM2A4 | ARNU – GM3A4 | ARNU – GM4A4 | ARNU48GBRZ2 | ARNU – GBRZ2 | ARNU – GBRZ4 | ARNU – GB1G2 | ARNU – GB2G2 | ARNU – GL1G2 /GL1G4 | ARNU – GL2G2 / GL2G4 | ARNU – GL3G2 / GL3G4 | ARNU – GB3G2 / GBGA4 | ARNU – GB4G2 | ARNU – GB4G4 | ARNU – GCEA2 | ARNU – GCFA4 | ARNU – GCFA2 /GCFA4 | ARNU – GCEU2 | ARNU – GCFU4 | ARNU – GCFU2 /GCFU4 | ARNU – GQAA2 / GQAA4 | ARNU – GVEA2 /GVEA4
* The asterisks stand for any character in the asterisk’ position.
ORDER CODES:
| INWFILGE001R000 | LG VRF systems to AC Cloud Control (WiFi) Interface – 1 unit |
- Intesis Gateway.
- Installation Manual & Warranty document.
- Warranty: 36 months.
