Easily integrate AC units into BACnet systems

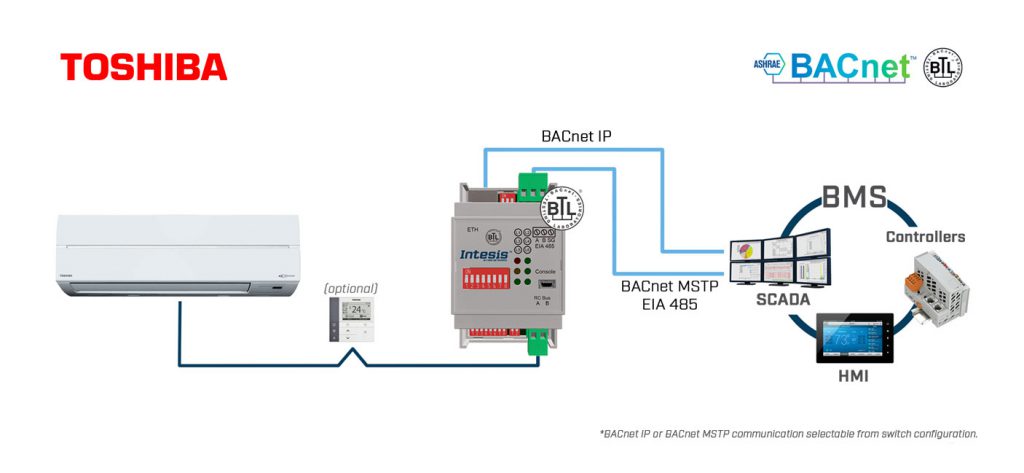

The Toshiba-BACnet gateway allows fully bi-directional communication between Toshiba VRF and Digital Air Conditioner units and BACnet IP or MSTP networks. The gateway is wired directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint…but the monitoring of errors, alarms, and some internal variables.
The product can be installed and set up in a really short time. It’s only a matter of wiring the gateway to the AC unit and configures the DIP-SW accordingly. No configuration software and no power supply are required. The product offers a web interface to easily monitor and control the indoor unit connected to the gateway. Additionally, the IP network settings can be established from this web interface.
Ensure energy savings
Intesis AC gateways allow reducing considerably the energy consumption of buildings while contributing to environmental protection.
Improve user’s comfort
The goal is to reduce energy while improving the user’s comfort. With Intesis these are not mutually exclusive outcomes!
Leading with leaders
We are the indisputable market leader in AC integration thanks to having the continuous support of the major AC manufacturers.
Product Information
- BTL mark ensures full interoperability with BACnet devices.
- Support BACnet IP and BACnet MS/TP.
- Configuration from onboard DIP-switches.
- IP settings are available in a web interface.
- Quick and easy installation (plug and set the DP-SW).
- External power not required.
- Simultaneous control of the AC unit by the IR remote controller and by BACnet IP or MS/TP.
- Reduced dimensions 93 x 53 x 58 mm.
- Mountable on DIN rail, wall, or even inside the indoor unit in some models of AC.
- The abstraction of Air Conditioning unit properties and functionalities as fixed BACnet Objects.
- Occupancy function allows energy savings. Costs related to HVAC systems in a building are one of the highest and this type of function allows to reduce them.
- Total control and monitoring of the AC unit from BACnet, including AC unit’s internal variables, running hours counter (for filter maintenance control), and error indication.
RAV-SM – KRT-E | RAV-SM – KRTP-E | RAV-RM – KRTP-E | RAV-SM – BT-E | RAV-SM – BTP-E | RAV-RM – BTP-E | RAV-SM – DT-E | RAV-SM – DTP-E | RAV-SM – SDT-E | RAV-RM – SDT-E | RAV-SM – CT-E | RAV-SM – CTP-E | RAV-RM – CTP-E | RAV-SM – MUT-E | RAV-RM – MUT-E | RAV-SM – UT-E | RAV-SM – UTP-E | RAV-RM – UTP-E | RAV-DXC010 LC | MMU-AP – MH-E | MMU-AP – MH1-E | MMU-AP – H | MMU-AP – HP-E | MMU-AP – HP1-E | MMU-AP – YH-E | MMU-AP – YH1-E | MMU-AP – SH-E | MMU-AP – SH1-E | MMU-AP – WH | MMU-AP – WH1 | MMD-AP – BH-E | MMD-AP – BHP-E | MMD-AP – BHP1-E | MMD-AP – H-E | MMD-AP – HP-E | MMD-AP – HP1-E | MMD-AP – HFE | MMD-AP – SPH-E | MMD-AP – SPH1-E | MMC-AP – H-E | MMC-AP – HP-E | MMC-AP – HP1-E | MML-AP – BH-E | MML-AP – BH1-E | MML-AP – H-E | MML-AP – H1-E | MMF-AP – H-E | MMF-AP – H1-E | MML-AP – NH-E | MMK-AP – H | MMK-AP – H1 | MMK-AP – MH-C | MMK-AP – MH-E | MMK-AP – MH1-E | MMK-AP – MHP1-E | RAV-SE – 1CP-ID | RAV-SE – 1CP-T | RAV-SE – 1UP-ID | RAV-SE – 1UP-T | RAV-SP – UT-UL
* The asterisks stand for any character in the asterisk’ position.
ORDER CODES:
| INBACTOS001R000 | Toshiba VRF and Digital systems to Bacnet IP/MSTP interface- 1 unit |
- Intesis Gateway.
- Installation Manual.
- Warranty: 36 months.
