Seamlessly inter-connect PLC control systems and their connected devices to the IIoT networks MQTT and OPC-UA

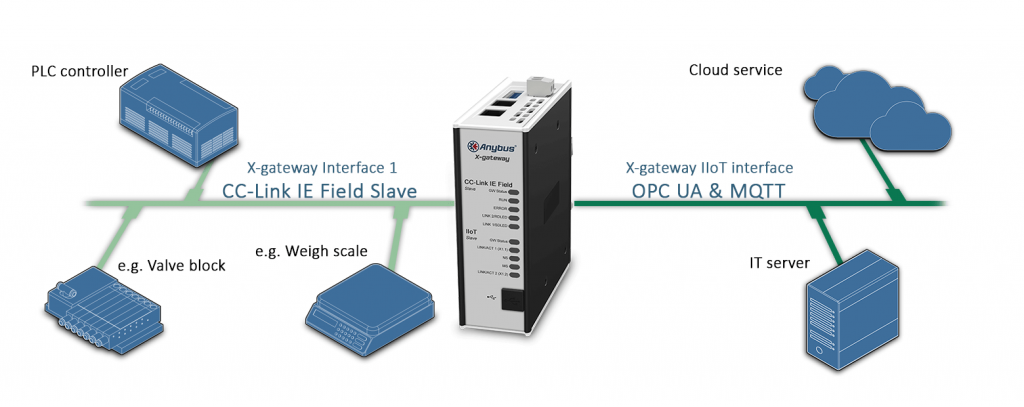

The X-gateway IIoT’s primary function is to allow the fast streaming of an industrial network into OPC-UA and MQTT. This offloads your PLC from working with additional services while providing extra security by isolated the high-risk connections away from sensitive areas. In principle, the PLC gets its own firewall.
The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway.
Product Information
- Supports OPC-UA micro-embedded profile
- Supports Discovery Services
- User name and password authentication
- Supports DataChange Subscription
- MQTT client acting as a publisher
- Proven and tested with PLC’s from all leading manufacturers
- Possibility to build web pages to display and control a factory floor
OPC UA
- Support for micro-embedded profile
- Data direction from server to client
- Supports Discovery Services
- Timestamp supported via discovery server
- User name and password authentication
- Supports DataChange Subscription
- Maximum 80 data point tags
- Dual-port cut-through switch
- Dual RJ-45 ports available simultaneously
MQTT:
- MQTT client acting as a publisher
- MQTT version 3.1.1 supported
- JSON data encoding supported
- QoS 0-2 supported
- User name and password authentication
- Maximum 256 data point tags
- Dual-port cut-through switch
- Dual RJ-45 ports available simultaneously
CC-Link IE Field Slave settings can be made either via on-board switches or by importing the provided .CSP file into engineering tool of the controlling PLC.
- CC-Link IE Field interface of the X-gateway is conformance tested and approved by CLPA
- CC-Link Specification (Profile), publication BAP-05028-B
- Acts as a CC-Link IE Field Network Intelligent Device Station
- Max 512 bytes Input and 512 bytes I/O data
- On CC-Link IE Field: Max of 832 I/O points and 204 words Input and 832 I/O points and 204 words Output
- Baudrate 1 Gbit/s fixed operation
- TCP/IP settings configurable with web-page, Configuration Tool, DHCP or ARP
- CC-Link IE Field station setting via on-board switches
- 2x RJ-45 ports available simultaneously
| Dimensions (L•W•H) | 114 x 44 x 127mm or 4,49 x 1,73 x 5,00″ |
| Weight | 400g or 0,880 lbs |
| Operating temperature | -25 to +65 °C or -13 to +149 °F |
| Storage temperature | -40 to +85 °C or -40 to +185 °F |
| Power supply | 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector |
| Current consumption | max. 400mA (Typical 200mA) |
| Enclosure material | Aluminium and plastic |
| Installation position | Vertical / Flat* |
| Galvanic isolation | YES, on both BUS/Ethernet side |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | DIN-rail (EN 50022 standard) |
| I/O configuration | via USB port with Anybus Configuration Manager software |
| Certifications | CE, CULUS, RoHS |
ORDER CODE: AB7557
INCLUDED COMPONENTS:
– Quickstart documentation
– USB configuration cable
– Configuration software available for download
– (Power supply not included)
GUARANTEE: 3 years
