Get M-Bus meter data on electricity, water, gas, etc. into a Modbus TCP PLC system (Up to 80 M-Bus Loads)

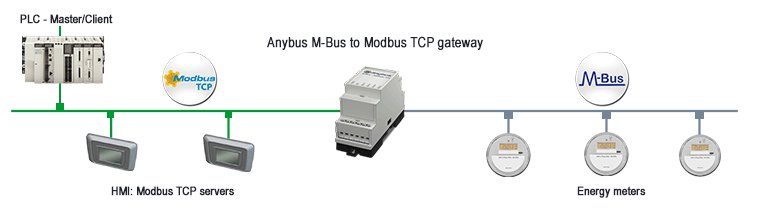

The Anybus M-Bus to Modbus TCP gateway allows M-Bus devices to communicate on a Modbus TCP network. The gateway decodes M-Bus telegrams making it possible to map meter values to Modbus registers. This enables central control and supervision of measuring devices which usually use the M-Bus protocol.
Get a complete system overview
By getting data on consumed electricity, water, gas, etc. straight into your PLC system, you can get a complete overview of your site in a SCADA system, including building parameters which otherwise have to be checked separately.
Access other networks – pair with an Anybus X-Gateway
You can also connect your M-Bus devices to any other industrial network by pairing the M-Bus gateway with an Anybus X-gateway for Modbus TCP. Connect to Rockwell Logix, Siemens, Mitsubishi PLC’s, and more.
Easy configuration – no programming required
The accompanying web-based configuration tool allows you to set up the gateway in an easy-to-use web interface. No programming is necessary.
Product Information
- Features
- M-Bus Master interface
- Modbus TCP Server interface
- Archtecture
- Specifications
- Datasheet
- In the box
- Get data on your consumption of electricity, water, or gas onto a Modbus TCP network
- Enable total overview of your site’s consumption, including building parameters (electricity, water, gas, etc.) into a SCADA system
- No hardware or software changes are required for the connected M-Bus device
- Two versions available supporting connection up to 20 or 80 M-Bus Loads
- Connect to other networks and PLC systems by combining with an Anybus X-gateway and access 10 additional industrial networks
- Easy web-based configuration tool. No programming required.
- Global free technical support and consultancy.
- M-Bus Master interface compliant with EN 13757-2
- Connects to 50 M-Bus Loads
Conforms to Modbus Appl. Protocol Spec. V1.1b
- Connects up to 5 Modbus TCP Clients
- 100 Mbit/s
| Dimensions (L•W•H) | 89 x 35 x 58 mm or 3,50 x 1,38 x 2.28 inches | |
| Weight | 80g or 0,18 lbs | |
| Operating temperature | 0 to +50 °C or 32 to +122 °F | |
| Power supply | 24 ±5 VDC | |
| Power consumption | 2 W idle state, 10 W max. | |
| Ethernet connector | 1x shielded RJ45 100 Mbit/s | |
| M-Bus connector | 5-pin screw terminal, max. 2.5mm² | |
| Galvanic isolation | On Ethernet side | |
| Mechanical rating | IP20, Plastic housing | |
| Mounting | DIN-rail (EN 50022 standard) | |
| Certifications | CE |
-
ORDER CODES 025070 (Up to 80 M-Bus Loads) Included components Quick start guide, manuals.
(Power supply not included)Required software IP-settings are made using the configuration tool “Netdiscover”.
Downloadable under “Files and Documentation” from this website.
Guarantee 3 years
