A standard RS 485 PROFIBUS repeater module for 12 Mbps with diagnostic LEDs and a redundancy feature
The Anybus 2 Channel Repeater is a standard RS 485 PROFIBUS repeater module for 12 Mbps with diagnostic LEDs and a redundancy feature. Bus connection is utilised by screw terminals and additional DB9 connectors.
The repeater channels are directly connected with the ProfiTrace OE core in the 1B/1C Head Station. Bus monitor data is directly available on the web server.
The advanced 12 Mbps core of the repeater module can be cascaded unlimitedly and has increased RS 485 strength. The data traffic is constantly monitored for glitches which are digitally filtered out. Every channel has onboard switchable termination and is able to drive 31 devices.
Product Information
Distinctive features
- Diagnostics LEDs
- Bus speed up to 12 Mbps
- 31 devices per channel
- Screw terminals bus connection
- DB9 connector for monitoring
- Redundancy feature included
- Bus termination integrated

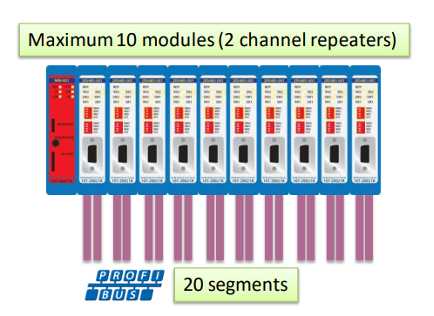

Figure 1 – 2 Channel repeater configuration example
Dimensions and weight
| L x W x H: |
137 x 25 x 105 mm (including backplane, per module) |
| Weight: |
119 g (excluding plug-able connectors, backplane and packing material) |
| Mounting DIN-rail type | 35mm × 7.5mm (EN 50022, BS 5584, DIN 46277-3) |
Ambient conditions
|
Operating temperature range |
-20° … +60° Celsius (for mounting position see manual) -4° … 158° Fahrenheit |
| Isolation class |
IP 20 (IEC/EN 60529, DIN 40050) |
Backplane
|
PROFIBUS networks |
4 (set by dipswitches or web server) |
|
Modules |
10 (positioned in the first 10 slots) |
|
Power supply |
Provided through the backplane |
|
Typical backplane current consumption |
Yes |
|
Redundant power supply |
300 mA (at 5.72 VDC) |
|
Max. backplane current consumption |
500 mA (at 5.72 VDC) At this current consumption the module is switched OFF from the backplane. Occurs when the module is faulty, e.g. internal short circuit. |
|
Compatible backplane units |
101-200011, 101-200022, 101-200023, 101-200024, 101-200027 |
Protocol specifications
|
Supported Protocols
|
DP-V0, DP- V1, DP-V2, FDL, MPI, FMS, PROFIsafe, PROFIdrive and any other FDL-based protocol |
|
Address |
NO bus address required |
|
Transmission speed |
9.6 kbps .. 12 Mbps (including 45.45 kbps) |
|
Transmission speed detection |
Auto detect (< 10 s detection and 50 s baudrate switchover time) |
| Data delay time |
At baudrate Normal mode Redundunt mode 9.6 – 500 kbps 2.8 Tbit 13.8 Tbit 1.5 Mbps 3.2 Tbit 14.2 Tbit 3 Mbps 3.9 Tbit 14.5 Tbit 6 Mbps 4.6 Tbit 15.6 Tbit 12 Mbps 6.4 Tbit 17.4 Tbit |
| Deviation | 2-bit times (over the complete message) for received messages is allowed and is corrected to nominal speed when transmitted. |
PROFIBUS cable specifications
|
Cable lengths
|
1200 m at 9.6 kbps to 93.75 kbps 1000 m at 187.5 kbps 400 m at 500 kbps 200 m at 1.5 Mbps 100 m at 3 Mbps to 12 Mbps |
|
Wire diameter (for the screw terminals) |
< 2.5 mm2 |
|
Wire type |
Stranded or solid core |
|
Number of devices |
Maximum 31 devices per channel (busload) |
|
Termination |
Integrated and switchable Powered according to PB RS 485 (390/220/390 Ohms) |
|
Redundancy |
Yes, a maximum of 10 cables activated by a switch |
|
Cascading depth |
No limit (only limited by the bus parameter of the master) |
| Cascading units |
With standard bus parameters: At baudrate Normal mode[units] 9.6 kbps 7 19.2 kbps 7 45.45 kbps 42 93.75 kbps 7 187.5 kbps 7 500 kbps 17 1.5 Mbps 23 3 Mbps 19 6 Mbps 16 12 Mbps 15 Formula to calculate a number of cascading units with adjusted Tslot : Cascading units = (Tslot – maxTsdr) / (2 × Tdata_delay_time) Tdata_delay_time is described in protocol specifications on the previous page. Example 1.5 Mbps, normal mode: Cascading units = (300-150) / (2×3.2) = 23 |
Connector Layout
|
PROFIBUS SCREW Terminal CH1 and CH2 |
Plug-able screw terminal, pitch 5,08 mm Pin A: PROFIBUS A (green wire) Pin B: PROFIBUS B (red wire) Pin SH: Shield Pin I: Indirect Shield |
|
PROFIBUS DB9 CH2 |
D Sub connector, 9 contacts (PROFIBUS specification) Pin 1: N.C. Pin 5: GND Pin SH is connected internally to the DIN rail with spring-loaded contact. The pin I is connected internally with 10nF/1MOhm to shield. |
LEDs
|
RDY: Ready |
The module is ready for operation (ON) |
|
RX: Receiving |
Receiving telegrams (blinking) |
|
ER: Error Receiving |
No, or bad receiving telegrams detected (ON or blinking) |
| SW: Switch Network Termination | Network termination active (ON) |
Dipswitches
|
NW0 NW1 LEFT LEFT RIGHT LEFT LEFT RIGHT RIGHT RIGHT
RED LEFT RIGHT
H/S LEFT RIGHT |
PROFIBUS Network 1 2 3 4
Redundancy OFF ON
Settings Hardware Software |
Standard and approvals
|
CE |
EMC Directive 2014/30/EU, class A Digital Device RoHS Directive 2011/65/EU |
|
FCC |
47 CFR 15, Unintentional Radiator, class A Digital Device. |
| UL |
Report reference: E468970 Standards for safety: UL 508 – Industrial Control Equipment, CSA C22.2 No. 142-M1987 – Industrial Control Equipment |
Others
|
Head Station firmware |
ALL |
| MTBF | 1448431 hours, at 30o Celsius, IEC TR 62380 |
| Order Codes | 101-201102 |
| Included Components | Anybus Combricks, backplane socket |
| Warranty | 1 year |
