Remotely monitor IS segments over Ethernet from the safe zone
The Anybus ComBricks is the first PROFIBUS based automation system that unites repeaters and permanent monitoring in a web browser. With an evolving industry using more mixed architecture networks, users are able to integrate ComBricks into their PROFINET network via Osiris, allowing to monitor everything from one single cross-platform.
The RS 485-IS barrier is the only available product for remotely monitoring IS segments over Ethernet from the safe zone. Because of the permanent mounting of the barrier, the user does not have to touch the installation anymore. This avoids hot permits and other paper work.
As an alternative it can also be used as a busmonitor on existing IS segments created by 3rd party barriers. The IS barrier can be mixed on the backplane with other ComBricks modules like, the PROFIBUS PA, Fiber Optic and regular RS 485 modules.
The Barrier is intended to be installed outside the hazardous area or in an enclosure with a suitable type of protection. A special IS DB9 PROFIBUS plug is required that contains a terminator defined in the RS 485-IS PROFIBUS Installation Guideline.
Product Information
- Intrinsically safe RS 485
- Integrated quality-oscilloscope
- Diagnostic LEDs
- Max bus speed 1.5 Mbps
- 31 devices per channel
- RS 485 IS DB9 connection
- Redundancy feature included
- With RS 485 IS connector

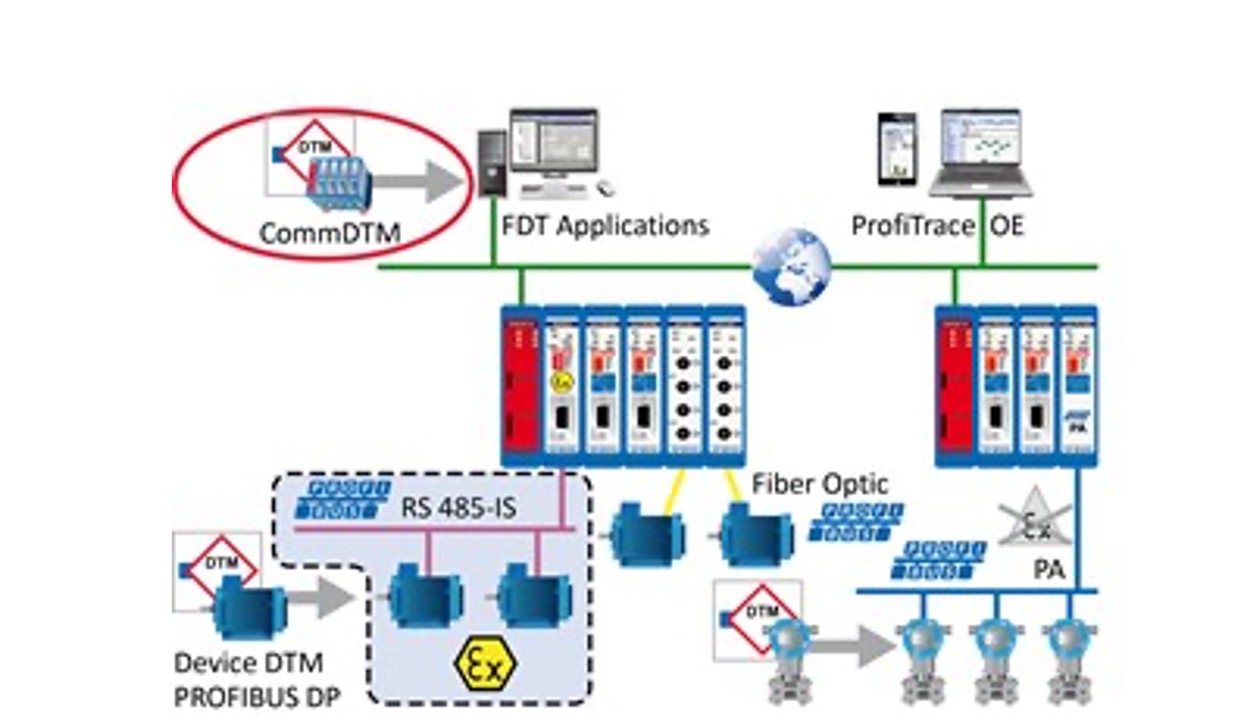

Figure 1 – Application of RS485-IS Repeaters in a network
Backplane
PROFIBUS networks |
4 (set by dipswitches or web server) | |
Modules | 10 (positioned in the first 10 slots) | |
Power supply | Provided through the backplane | |
Current consumption | ± 450 mA (750 mA max, At this current consumption the module is switched OFF from the backplane. Occurs when the module is faulty, e.g. internal short circuit. | |
Compatible backplane units |
101-200011, 101-200012, 101-200023, 101-200024, 101-200027 |
Protocol Specifications
Supported Protocols | DP-V0, DP- V1, DP-V2, FDL, MPI, FMS, PROFIsafe, PROFIdrive and any other FDL-based protocol | |
Address | NO bus address required | |
Transmission speed | 9.6 kbps .. 1.5 Mbps (including 45.45 kbps) | |
Transmission speed detection | Auto detect (< 10 s detection and 50 s baudrate switchover time) | |
Data delay time (normal mode) | 2.0 Tbit | |
Data delay time (redundant mode) | 12.0 TBit | |
Delay time jitter | Max. ¼ TBit |
Oscilloscope specifications
Frequency |
192 MS/s | |
Resolution | 27 mV | |
Differential range | -3.49 .. 3.49 V |
PROFIBUS cable specifications
Cable lengths |
1200 m at 9.6 kbps .. 93.75 kbps 1000 m at 187.5 kbps 400 m at 500 kbps 200 m at 1.5 Mbps |
|
Number of devices | Maximum 31 devices per channel (busloads) | |
Required termination | DB9-IS connector with internal 200Ω only | |
Redundancy | Yes, maximum of 10 cables activated by the switch |
Dipswitches
NW0 NW1 |
PROFIBUS Network |
|
LEFT LEFT
RIGHT LEFT
LEFT RIGHT
RIGHT RIGHT
RED
LEFT
RIGHT
H/S
LEFT
RIGHT |
1
2
3
4
Redundancy
OFF
ON
Settings
Hardware
Software |
ATEX (electrical)
Uo |
4.2 V | |
Io | 149 mA | |
Ui | ≥ 4.2 | |
Li | ≈ 0 μH V | |
Ci | Negligibly small | |
Output characteristic | Linear |
ATEX (compliance):
II (2) G [Ex ia Gb] IIC EN-IEC60079-0: 2009 / EN-IEC60079-11: 2012 / EN-IEC60079-25: 2010 PROFIBUS International IS Installation Guidelines Certification number: DEKRA 12ATEX0192 |
LEDs
RDY | The module is ready for operation (ON) | |
RX | Receiving telegrams (blinking) | |
HWE | Internal repeater error (contact HMS Technical Support) | |
ER | Signal amplitude of the telegrams is too low (< 1.64 V) | |
TERM | Idle voltage too low ( <0.35 V .. >0.75 V ) Alarm values can be changed through the web server. |
Others
Head Station firmware | At least version 1.272 | |
Operating temperature | 0 .. 60 °C | |
Weight |
Order Codes | 101-201410C |
Included Components | Anybus Combrick, backplane socket and RS 485 IS connector. |
Warranty | 1 year |
